High-Performance Piezoelectric Single Crystals

Unmatched Sensitivity and Energy Conversion for Next-Generation Ultrasonic Systems

PMN-PT and PIN-PMN-PT single crystals represent the most advanced piezoelectric materials available today, delivering significantly higher electromechanical coupling, piezoelectric response, and strain performance than conventional PZT ceramics.

These exceptional properties enable ultrasonic systems with greater sensitivity, broader bandwidth, higher acoustic output, and improved image resolution. From medical ultrasound and non-destructive testing to underwater acoustics and precision sensing, single crystal technology is redefining the performance limits of piezoelectric devices.

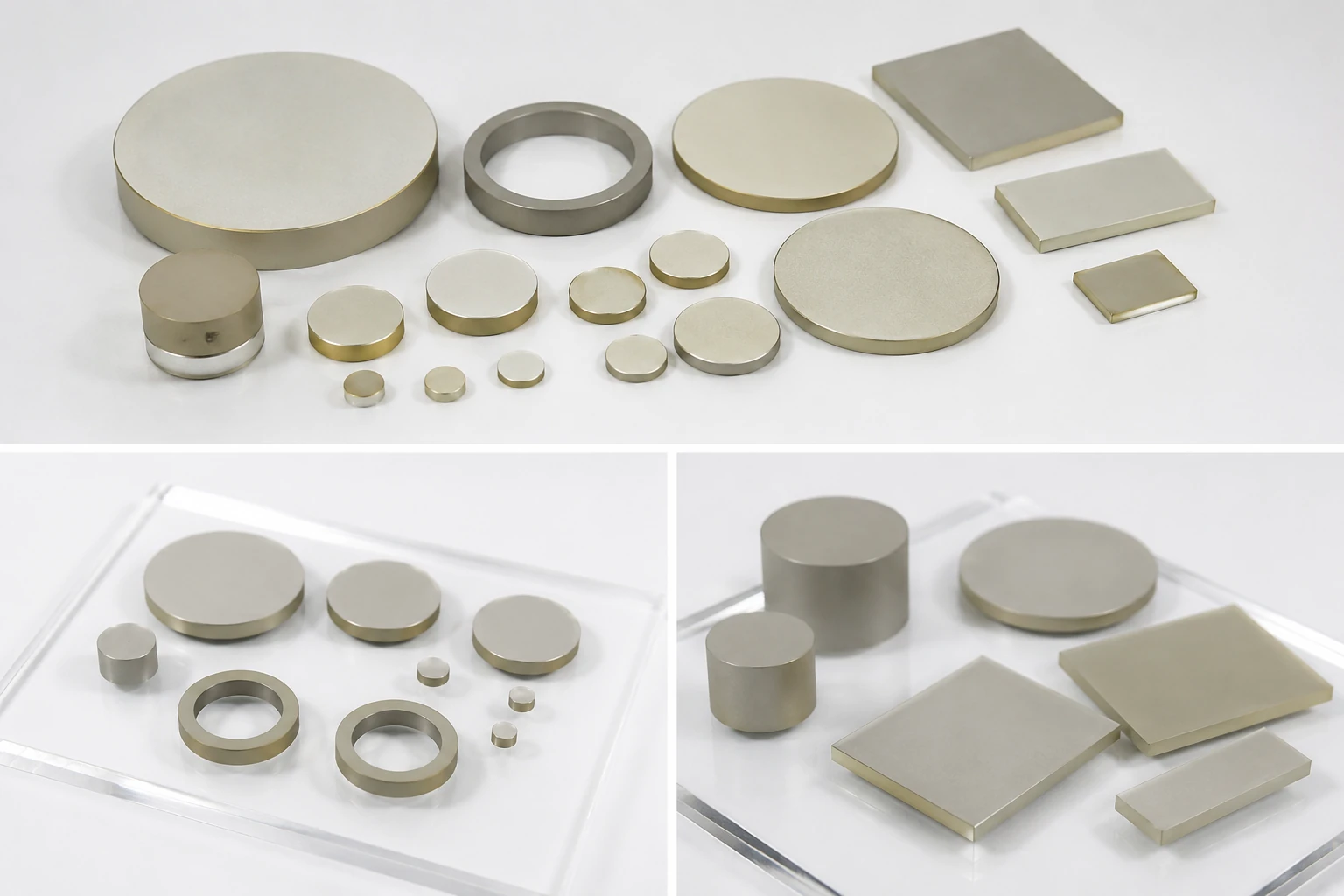

Our single crystal materials are available in a variety of custom geometries, including discs, rings, plates, bars, and precision-machined components to meet the requirements of demanding applications.

Applications

Medical Ultrasound

  • Diagnostic imaging transducers
  • Phased-array probes
  • Doppler ultrasound systems
  • IVUS and high-frequency imaging

Underwater Acoustics

  • Sonar transmitters and receivers
  • Hydrophones
  • Underwater communication systems
  • Acoustic positioning systems

Non-Destructive Testing (NDT)

  • Broadband ultrasonic probes
  • Flaw detection systems
  • Thickness measurement
  • Structural inspection equipment

Precision Sensors

  • Acoustic sensors
  • Accelerometers
  • Vibration monitoring
  • High-sensitivity receiving devices

Advanced Actuation

  • Precision actuators
  • Adaptive optics
  • Active vibration control
  • Energy harvesting devices

Why Choose Our Single Crystals?

PMN-PT single crystals provide ultra-high piezoelectric coefficients and electromechanical coupling factors, enabling superior receiving sensitivity and signal resolution.

Compared with conventional PZT ceramics, single crystal materials deliver broader operating bandwidth and significantly improved acoustic output, resulting in enhanced system performance.

Single crystals exhibit substantially higher strain levels, allowing larger displacement and improved actuator performance while operating at lower electric fields.

PIN-PMN-PT single crystals provide improved coercive field strength and thermal stability, making them suitable for higher-power and more demanding operating environments.

Property Symbol Units Single Crystal
      PMN-28% PT PMN-32% PT PIN-24% PMN-PT
Dielectric Properties
Relative Free Dielectric Constants (1kHz) Kσ11 - 1600 1620 1728
Relative Free Dielectric Constants (1kHz) Kσ33 - 5500 7000 4753
Phase Transition Trt °C 90-100 80-90 100-115
Coercive Field Ec kV/cm 2.5 2.5 4.5-6
Physical Properties
Density ρ g/cm3 8.1 8.1 8.122
Coupling Coefficients
Coupling Coefficient K15 - 0.28 0.39 0.26
Coupling Coefficient kt - 0.6 0.62 0.5
Coupling Coefficient K31 - 0.43 0.44 0.46
Coupling Coefficient K33 - 0.9 0.93 0.89
Piezoelectric Charge Coefficients (Displacement Coefficients)
Piezoelectric Charge Coefficient d31 pC/N -568 -760 -646
Piezoelectric Charge Coefficient d33 pC/N 1190 1620 1285
Piezoelectric Charge Coefficient d15 pC/N 135 192 122
Compliance Coefficients
Compliance Coefficient SE11 m2/N x 10-12 45.86 58.85 45.76
Compliance Coefficient SE12 m2/N x 10-12 -28.11 -36.58 -19.60
Compliance Coefficient SE13 m2/N x 10-12 -15.43 -20.80 -23.16
Compliance Coefficient SE33 m2/N x 10-12 36.15 49.18 49.04
Compliance Coefficient SE44 m2/N x 10-12 15.53 16.53 14.33
Compliance Coefficient SE66 m2/N x 10-12 16.64 18.15 16.10

Data represent typical material values. Actual production values may vary +/- 10% for dielectric properties and +/- 5% for electromechanical and physical properties.
