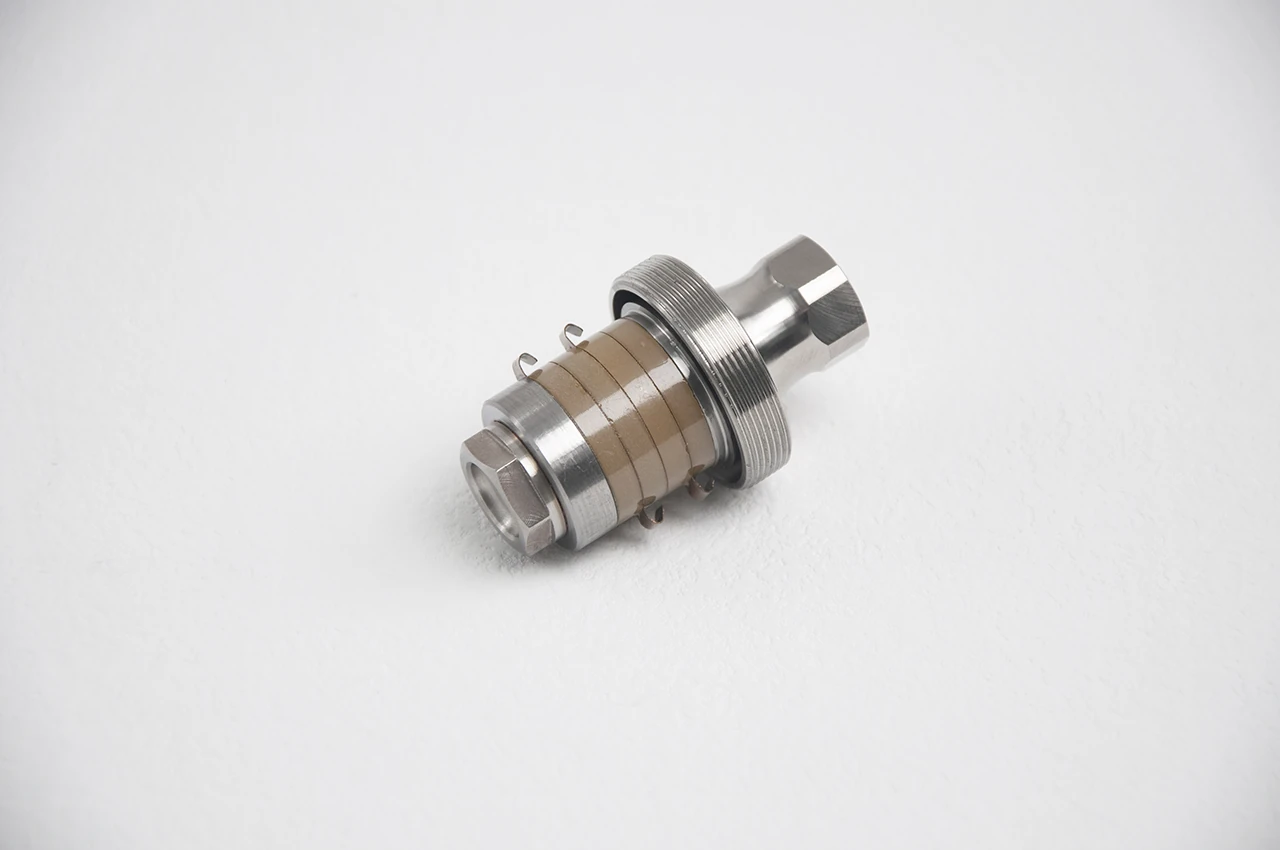

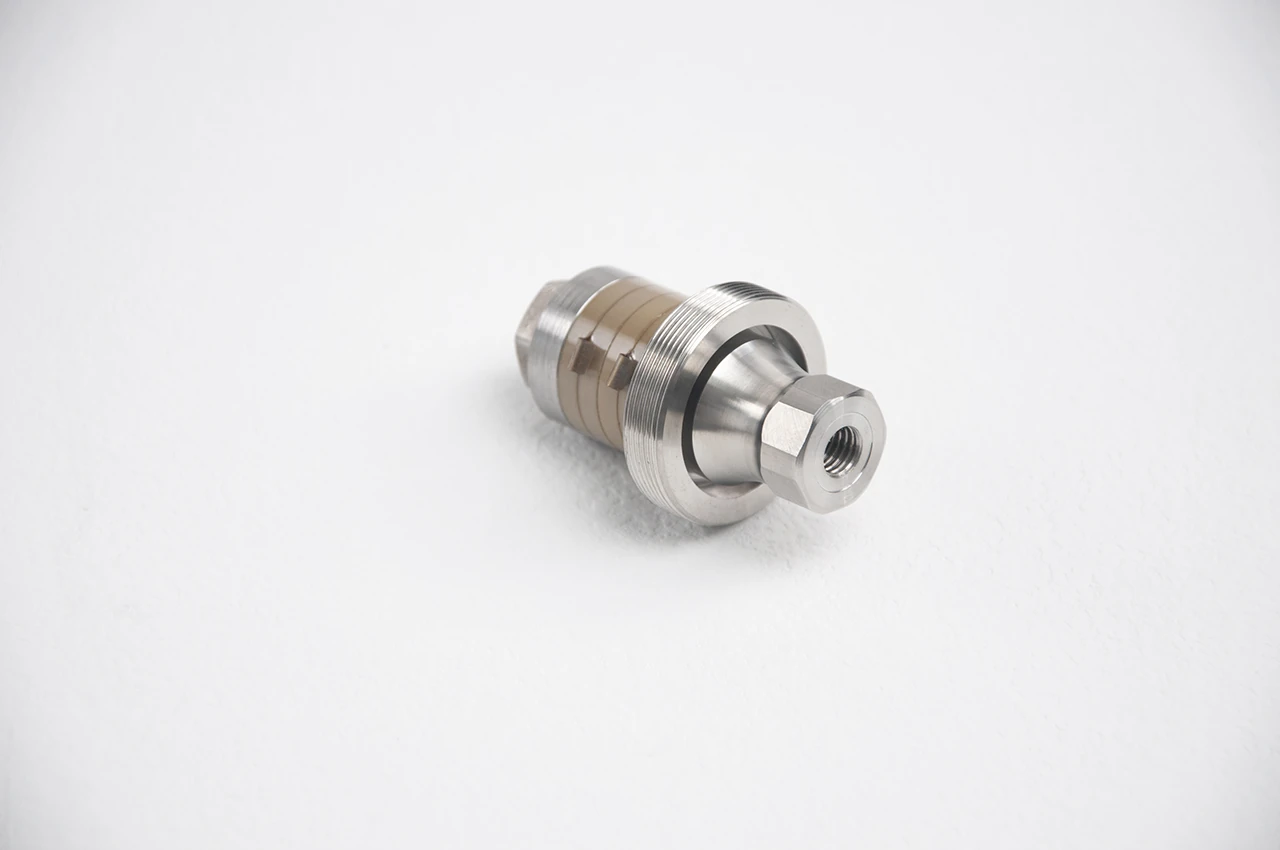

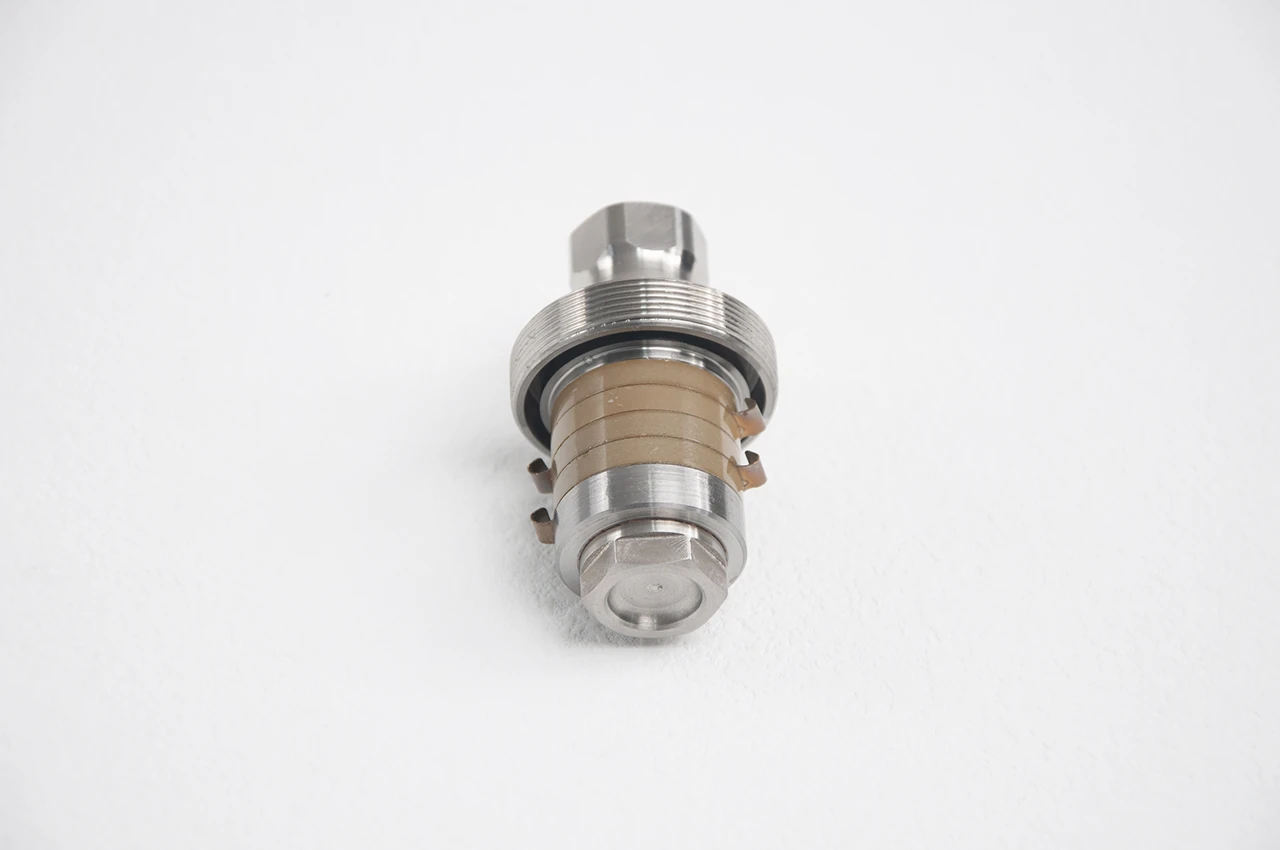

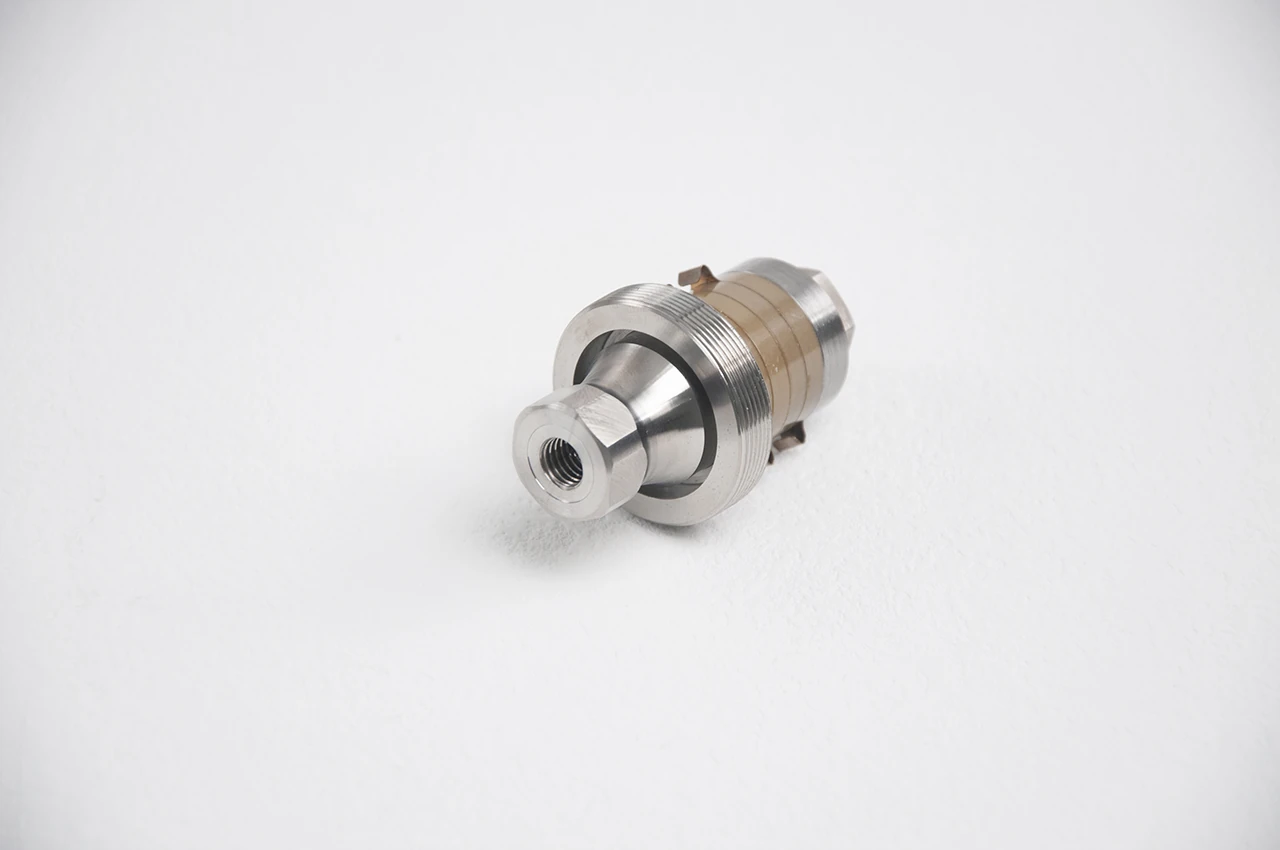

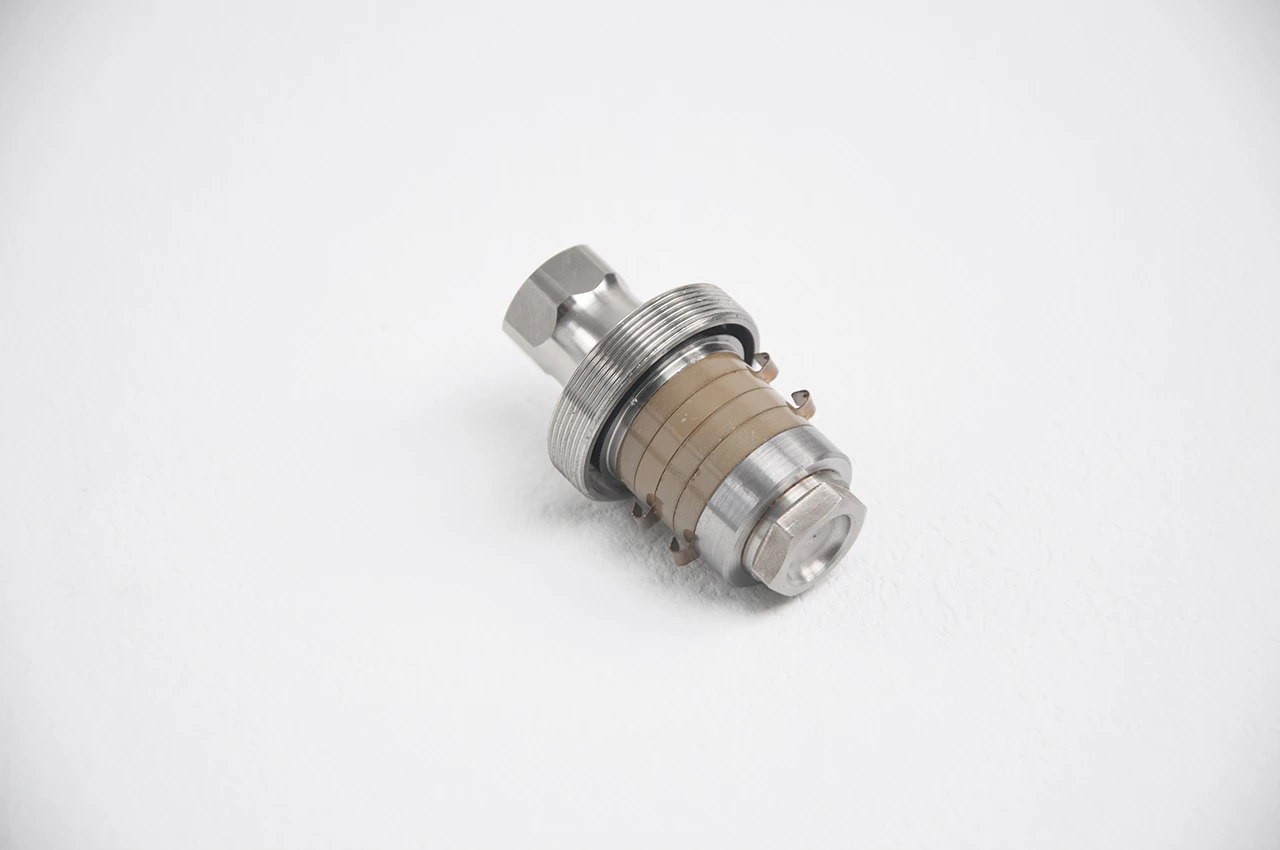

40kHz-900W-F25-TT-1
Original price was: $280.00.$220.00Current price is: $220.00.
21% Off
- High Conversion Efficiency
- Premium Piezoelectric Ceramics for High Power Density
- Stable Amplitude Output with Low Heat Generation
- Long Service Life with 100% Factory Tested
- Telsonic Compatible
- OEM & Custom Designs Available
Technical Details
| Electrical Specification | Data Result |
|---|---|
| Transducer Model No.: | 40kHz-900W-F25-TT-1 |
| Resonant Frequency (Fs ± 0.5kHz) | 40 kHz (working 39.5k – 42.0 k) |

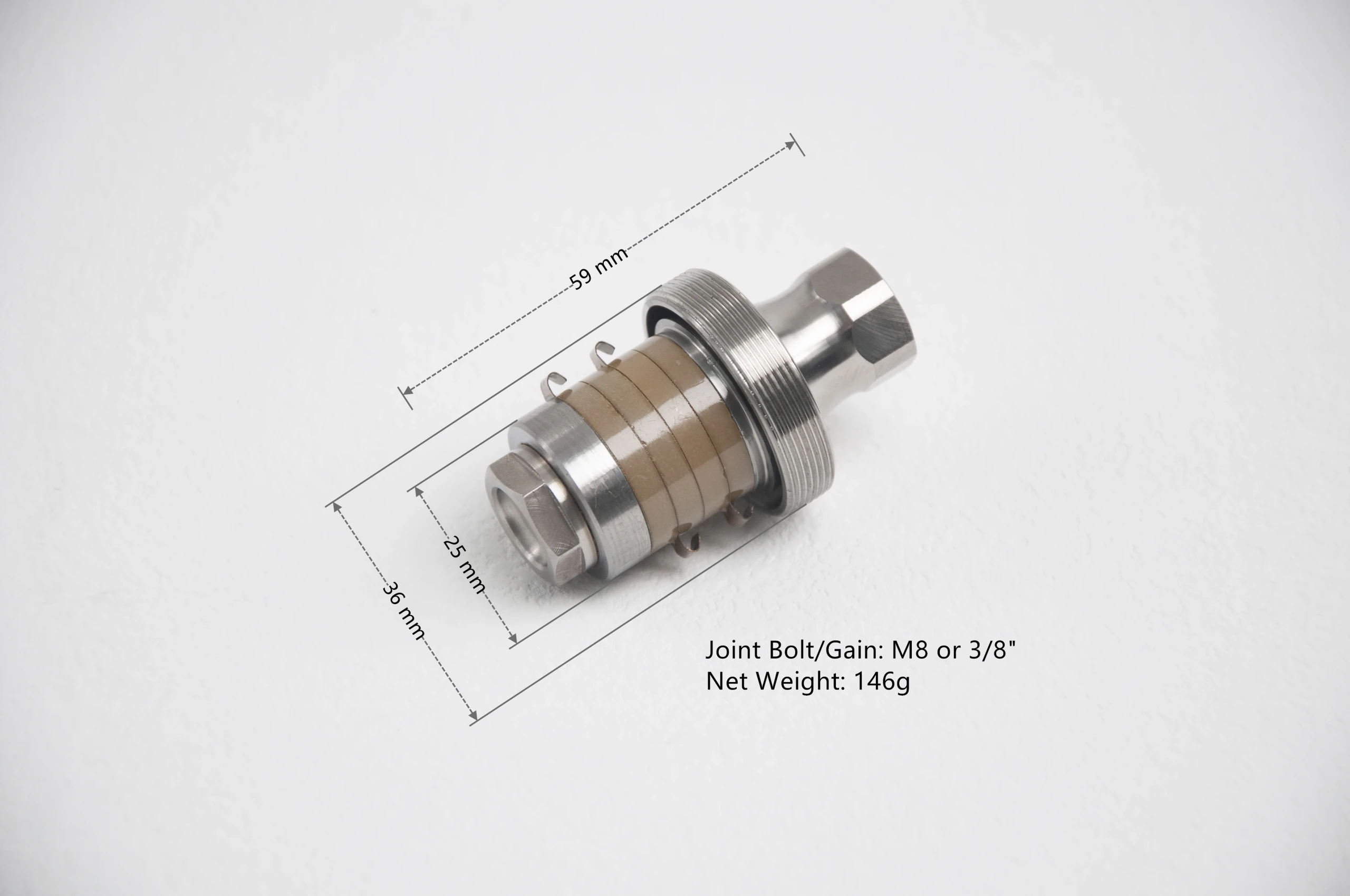

| Transducer’s Maximum Diameter: | Φ36 mm |
| Transducer’s Maximum Height /Length: | 59 mm |
| Flange Size: | Φ36 mm |
| Piezoceramic Ring Diameter (mm) | Φ25 mm x 4 pcs |
| Piezoceramic Ring Quantity (pc) | 4 Pcs |
| Impedance (Ω) | Transducer : 4 Ω |
| Capacitance (C±10%pF) | 4000 pF |
| Input Power (Watt) Max | Rated Power: 900Watt |
| Amplitude (μmp-p) | Transducer : 7 μmp-p |
| Front Mass Metal | Titanium Alloy TC4 (Ti-6Al-4V) Titanium Grade 5 |
| Back Mass Metal | Titanium Alloy TC4 (Ti-6Al-4V) Titanium Grade 5 |
| Joint Bolt /Gain size | 3/8″ or M8 Default Type: M8 |
| Net Weight (gram) | 146 gram |
| Total Height /Length (mm) | 59 mm |
| Remarks: | Available Optional Accessories:
Titanium Horn (Sonotrode) Titanium Booster (Amplifier) Ultrasonic Generator (CE Certified) |

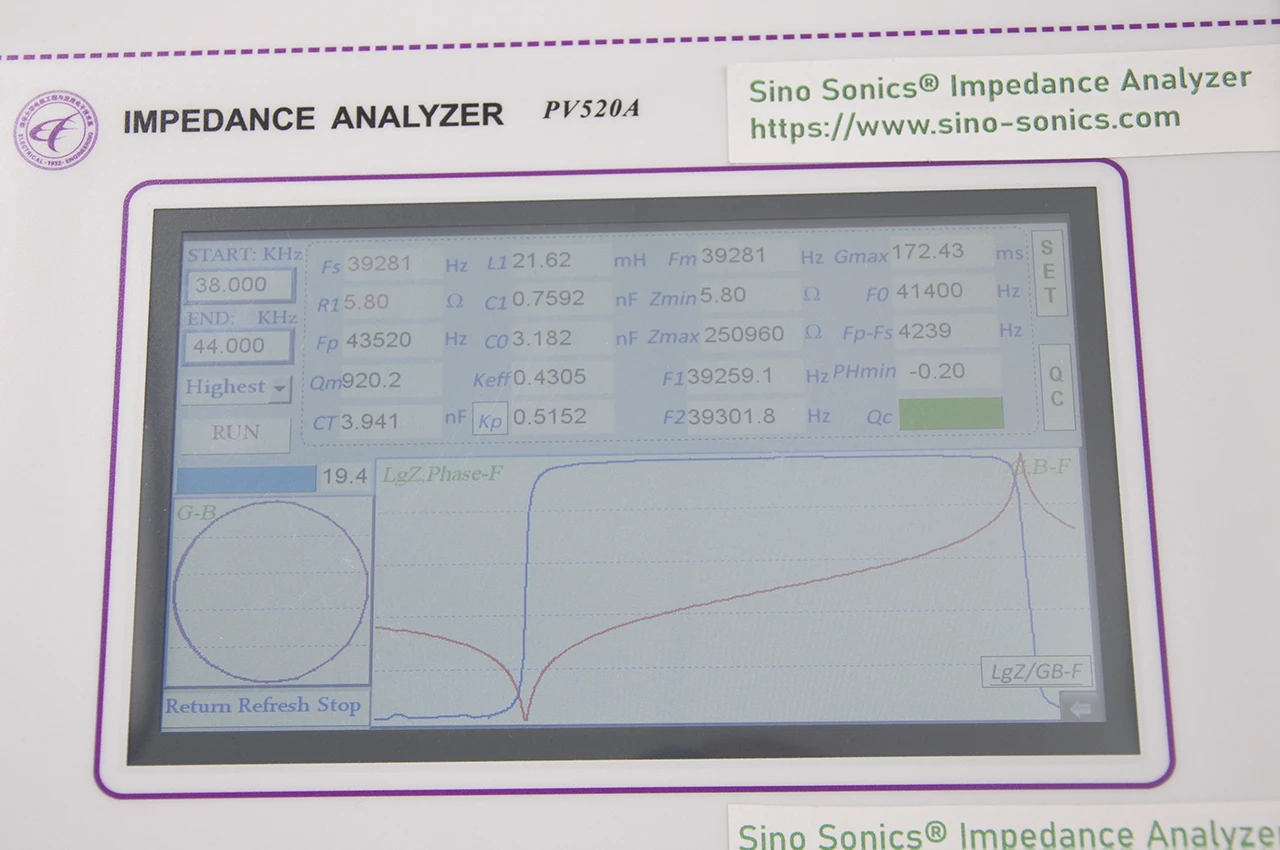

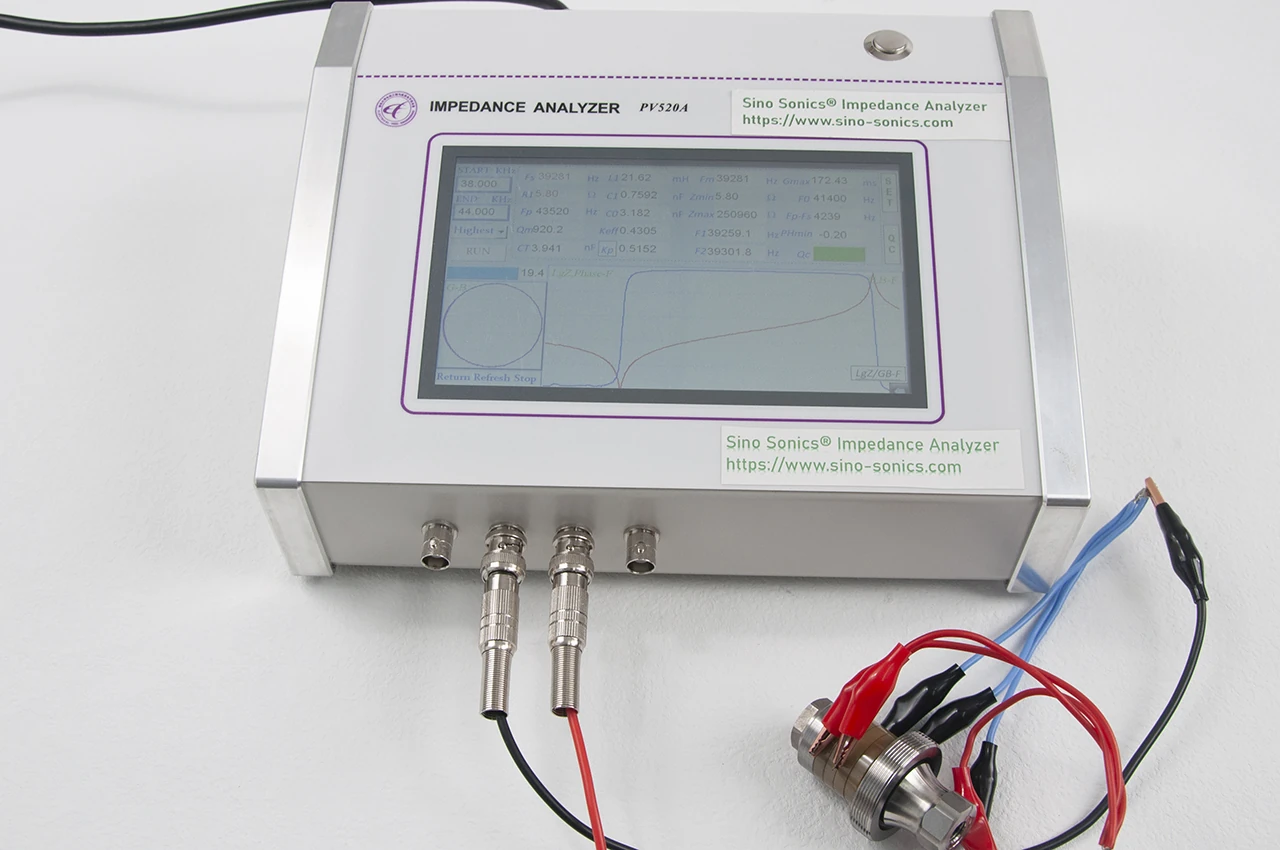

Impedance Analysis Chart
* Here we showcase a range of top-quality replacement components at super-low prices. These parts are fully compatible with the standard components from major manufacturers including Branson, Dukane, Telsonic, SoniKks and Rinco, Weber, these major manufacturers and constructed to equal (in many cases slightly improved) quality.
* We’re able to sell these ultrasonic parts at rock-bottom prices only because this is an automated operation with minimal overheads; we don’t offer help in selecting suitable parts for a particular application, rather, you are expected to know what you want and be able to specify it exactly. Generally this means that you already have ultrasonic equipment working and need replacement parts for spares or to replace worn or damaged items. Likewise if you need further information about these parts please see the other manufacturers’sites linked above.
* We supply transducer, also transducer with booster & horn. & We offer technical support, and welcome customer’s design.
for more information, please click Additional information tab, or consult our expert.
